Hloov Starch Ua Tshuab
Daim ntawv pov thawj: CE SGS ISO
Lub cev muaj zog hom: Siemens lossis Suav hom
Inverter hom: Delta / Pioneer / Schneider
Voltage: peb theem 380v 50hz (tuaj yeem kho tau)
Khoom siv: stainless hlau
Cov khoom siv ntsia hlau: 38CrMoAl / 12CrMoV / 6542
Hauj lwm lawm
Khoom nta
Hloov cov hmoov txhuv nplej siab yog ib hom hmoov txhuv nplej siab uas tau siv tshuaj los yog lub cev kho kom hloov nws cov khoom. Cov kev hloov kho no yuav suav nrog kev hloov pauv hauv nws cov solubility, viscosity, stability, lossis gelatinization yam ntxwv. Hloov cov hmoov txhuv nplej siab feem ntau yog siv rau hauv ntau daim ntawv thov zaub mov ua cov thickener, stabilizer, emulsifier, lossis kev ntxhib los mos. Nws tuaj yeem txhim kho kev ntxhib los mos, zoo li, thiab txee lub neej ntawm cov khoom noj uas ua tiav thaum tseem muab cov txiaj ntsig zoo xws li kev ruaj khov khov-thaw, txhim kho cov cua sov, lossis txo qis retrogradation. Qee hom kev hloov pauv cov hmoov txhuv nplej siab suav nrog cov hmoov txhuv nplej siab pregelatinized, cov hmoov txhuv nplej siab sib txuas, acetylated starches, thiab hydrolyzed starches.
Cov qauv khoom
Pregelatinized starch yog ib hom ntawm cov hmoov txhuv nplej siab hloov kho uas yooj yim rau txheej txheem thiab dav siv. Thaum nws siv, nws tsuas yog yuav tsum tau muab tshuaj txhuam nrog dej txias, uas tsis txhob muaj teeb meem ntawm cua sov thiab gelatinizing. Siv dav hauv ntau lub lag luam xws li tshuaj, khoom noj, tshuaj pleev ib ce, pub, roj drilling, hlau casting, textile, ntawv ua, thiab lwm yam.
Cov kab ntau lawm
Flow chart: Mixing-Extruder-Cooling-Srying-Crushing
Production Line Video
Machinery Parameter
|
Qauv |
Nruab Hwj chim |
Kev siv fais fab |
Muaj Peev Xwm Ntau Lawm |
Dimension |
|
DSE 65 |
73 kwv |
53 kwv |
100-150kg/h |
19000 * 1300 * 2200mm |
|
DSE 70 |
95 kwv |
64 kwv |
240-260kg/h |
14000 * 2000 * 4000mm |
|
DSE 75 F |
74 kwv |
5 kws |
200-250kg/h |
32000 * 1100 * 1800mm |

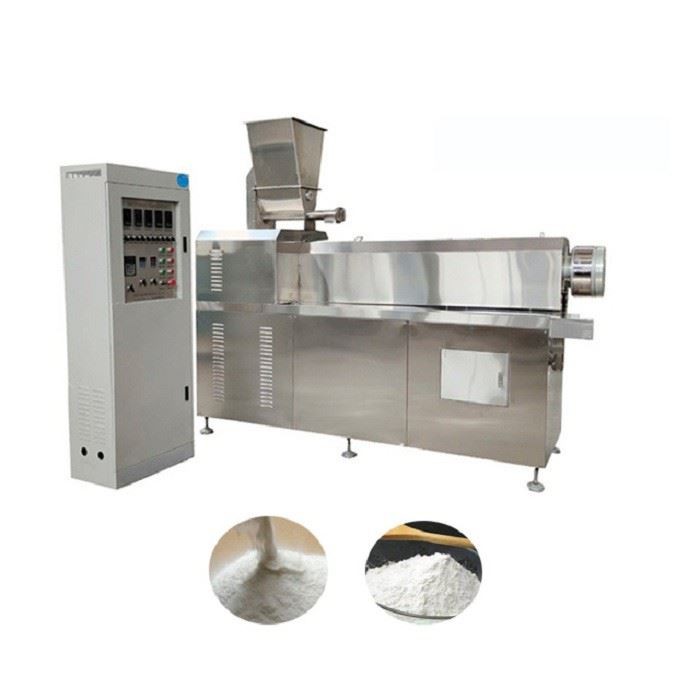

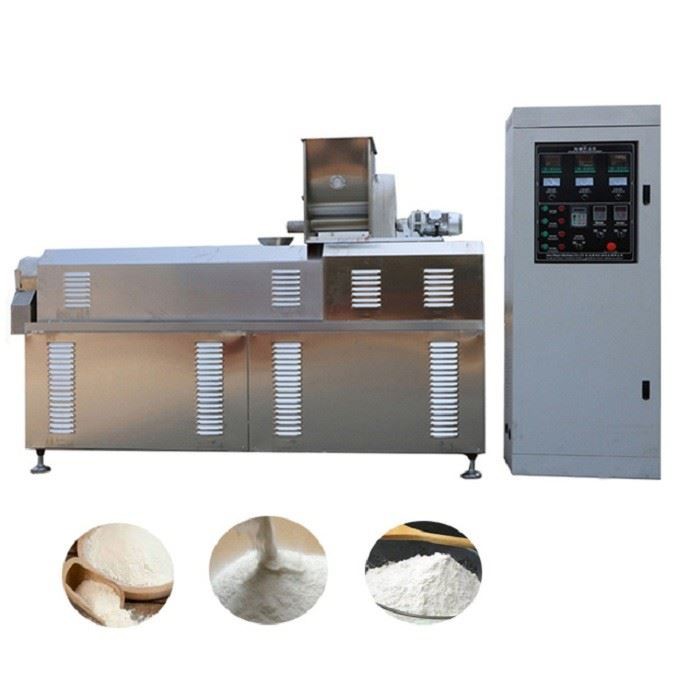

Main Machinery
Qauv: DSE65
Main lub cev muaj zog: 22kw
Peev xwm: 100-150kg/h
Loj: 19000 * 1300 * 2200mm
Cov khoom siv ntsia hlau: 38CrMoAl
Roj twj tso kua mis lub cev muaj zog: 0.37kw
Muaj nuj nqi: Extrude pellet, yog li ntawd tuaj yeem raug crush rau hmoov hauv chav crushing.
Qauv: DSE70
Lub cev muaj zog: 37kw
Peev xwm: 200-250kg/h
Cov khoom siv ntsia hlau: 38cCrmoAl
Qauv: DSE75F
Lub cev muaj zog: 37kw
Peev xwm: 200-250kg/h
Loj: 3200 * 1100 * 1800mm
Cov khoom siv ntsia hlau: 38CrMoAl
Roj twj tso kua mis lub cev muaj zog: 0.37kw
Peb Qhov Zoo
1. Muaj lub txee tswj kev ywj pheej, yooj yim rau kev khiav lag luam thiab kev kawm.
2. Tshwj xeeb tshuab tsim rau hloov cov hmoov txhuv nplej siab, hloov cov khoom feasure, haum rau kev ua lag luam.
3. Twin ntsia hlau extruder yooj yim rau tus kheej tu, tuaj yeem kho cov ntsia hlau sib xyaw rau koj raws li koj xav tau, los ntawm kev kho cov ntsia hlau kom ua cov khoom sib txawv.
Peb Daim Ntawv Pov Thawj
Peb tau dhau daim ntawv pov thawj CE thiab SGS, yog li peb tuaj yeem ua kom peb lub tshuab zoo.
Technical Engineers
FAQ
Q: Nws siv sijhawm ntev npaum li cas rau kev xa mus rau peb lub tebchaws?
A: Feem ntau yuav siv li 30 hnub.Tab sis tshwj xeeb yuav raws li koj qhov chaw nyob
Q: Koj muaj ntawv pov thawj dab tsi?
A: Peb muaj CE, SGS, BV ntawv pov thawj.
Q: Koj cov nqe lus them nqi yog dab tsi.
A: Feem ntau yog 30 feem pua T / T ua ntej, 70 feem pua ntawm cov nyiaj them poob haujlwm ua ntej shippment tom qab kuaj xyuas.
Q: Koj puas yog cov chaw tsim khoom lossis lub tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom nrog peb tus kheej lub Hoobkas.Our Hoobkas qhov chaw yog Wande industial park, Changqing koog tsev kawm ntawv, Jinan nroog, Shandong Province.China.
Hais txog Packing & Shipping
• Tom qab cov khoom tsim tawm thiab tau txais cov nyiaj them kawg, peb yuav npaj cov khoom xa tuaj sai li sai tau. Cov neeg siv khoom tuaj yeem xaiv hom kev thauj mus los (los ntawm hiav txwv, los ntawm tsheb ciav hlau, los ntawm huab cua, thiab lwm yam), thiab peb tuaj yeem tshawb xyuas tus nqi thauj khoom rau cov neeg siv khoom siv.
