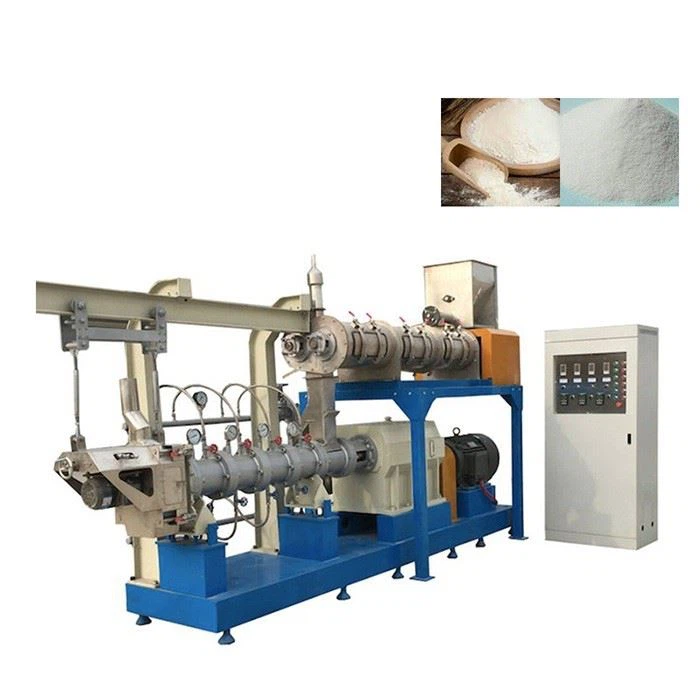

Muaj Starch Ua Tshuab
Daim ntawv pov thawj: CE SGS ISO
Lub cev muaj zog hom: Siemens lossis Suav hom
Inverter hom: Delta / Pioneer / Schneider
Voltage: peb theem 380v 50hz (tuaj yeem kho tau)
Khoom siv: stainless hlau
Cov khoom siv ntsia hlau: 38CrMoAl / 12CrMoV / 6542
Hauj lwm lawm
Khoom nta
Pre-gelatinized starch yog ib hom hmoov txhuv nplej siab ua raw khoom, hloov kho thiab txhim kho. Nws muaj ntau yam khoom tseem ceeb, suav nrog: kev daws thickening, dej solubility zoo, ncua kev kawm ntawv lossis kev ruaj ntseg nrog cov kua nplaum, kev tiv thaiv colloidal, tsim zaj duab xis, dej tuav, adhesion, non-toxic, tasteless, biocompatibility, thixotropy thiab lwm yam. Hauv kev tsim kho kev lag luam (pellet binder, briquette binder ntau
Sab hauv phab ntsa putty hmoov, gypsum puag putty hmoov, wallpaper kua nplaum, thiab lwm yam) tuaj yeem txhim kho kev tsim kho kev ua haujlwm, thaum tsim cov ntoo raug txo los ntawm 20 mus rau 40 feem pua.
1, zoo ceev thickening peev xwm, muaj ib tug tej yam dej tuav.
2, qhov ntau npaum li cas me me, qhov qis heev ntawm qhov sib ntxiv tuaj yeem ua tiav cov txiaj ntsig siab.
3, txhim kho qhov muaj peev xwm tiv thaiv swb ntawm cov khoom siv. Kev pabcuam neeg siv online
4, txhim kho kev ua haujlwm ntawm cov khoom siv, piv nrog cov hmoov txhuv nplej siab ua ntej gelatinized, kev tsim ua haujlwm zoo dua, yooj yim rau kev xav, tsis hnyav, batch tuab du.
5. Txuas lub sijhawm qhib ntawm cov ntaub ntawv.
Cov qauv khoom
Ntau lawm kab Flow Chart
Flow chart: Tov khoom--Screw conveyor--Extruder--Air conveyor--Dryer--Coling conveyor--Mid hoister--Crushing koom siab
Production Line Video
Technical Parameters
|
Qauv |
Nruab Hwj chim |
Kev siv fais fab |
Muaj Peev Xwm Ntau Lawm |
Dimension |
|
DSE 65 |
72 kwv |
50 kwv |
100-150kg/h |
19000 * 1300 * 2200mm |
|
DSE 70 |
92 kwv |
65 kwv |
240-260kg/h |
14000 * 2000 * 4000mm |
|
DSE 75 F |
70 kwv |
50 kwv |
200-250kg/h |
32000 * 1100 * 1800mm |
Main Machinery
Qauv: DSE65
Main lub cev muaj zog: 22kw
Pub: 0.75kw
Rotary txiav: 0.75kw
Lub zog cua sov: 10kw
Peev xwm: 100-150kg/h
Loj: 19000 * 1300 * 2200mm
Cov khoom siv ntsia hlau: 38CrMoAl
Roj twj tso kua mis lub cev muaj zog: 0.37kw
Qauv: DSE70
Lub cev muaj zog: 37kw
Pub: 0.75kw
Rotary txiav: 0.75kw
Roj twj tso kua mis: 0.37kw
Lub zog cua sov: 20kw
Peev xwm: 200-250kg/h
Cov khoom siv ntsia hlau: 38cCrmoAl
Qauv: DSE75F
Lub cev muaj zog: 37kw
Pub: 0.75kw
Rotary txiav: 1.1kw
Lub zog cua sov: 16kw
Peev xwm: 200-250kg/h
Loj: 3200 * 1100 * 1800mm
Cov khoom siv ntsia hlau: 38CrMoAl
Roj twj tso kua mis lub cev muaj zog: 0.37kw
Peb Qhov Zoo
Lub ntxaib-ntsia hlau extruder yog tsim los ntawm kev pub mis, extrusion system, cua sov system, kis tau tus mob, teb txiav thiab tswj qhov system. Tus tswv tsev txais cov kev hloov pauv ceev ceev kev tswj hwm thev naus laus zis, uas ua rau cov cuab yeej muaj zog dua thiab ua haujlwm ruaj khov; Cov ntsia hlau yog ua los ntawm hnav-resistant siab alloy khoom nrog ntev kev pab cuam lub neej; Pom qhov tsis siv neeg qhov kub thiab txias tswj qhov system, kom tswj tau qhov kub thiab txias ntau qhov kev xav tau, tsis muaj qhov tseeb dua: ntsia hlau nrog kev tu tus kheej, tsis tas yuav tshem tawm cov ntsia hlau tu: qhov tseem ceeb ntawm extruder, lub tuam txhab cov khoom hnyav precision ua, ruaj khov zoo, tus nqi qis. Lub tuam txhab muab cov qauv paub tab, cov txheej txheem kev teeb tsa thiab commissioning, kev pab cuam tom qab muag ib-nres.
Peb Daim Ntawv Pov Thawj
Peb tau nyob hauv kev lag luam no ntau tshaj kaum xyoo thiab tau txais daim ntawv pov thawj CE thiab SGS
Technical Engineers
Peb cov engineers muaj kev paub dhau los hauv kev sim thiab tsim cov tshuab thiab yog cov thawj coj hauv kev lag luam no. Raws li kev coj noj coj ua ntawm cov kws ua haujlwm, peb muaj cov txheej txheem thev naus laus zis thiab kev teeb tsa thiab kev pabcuam ua haujlwm kom ntseeg tau tias peb muab cov neeg siv khoom txaus siab.
FAQ
Q: Yuav ua li cas yog tias muaj teeb meem nrog lub tshuab uas peb daws tsis tau ntawm peb tus kheej?
A: Koj tuaj yeem tiv tauj peb cov neeg ua haujlwm muag khoom txhua lub sijhawm, peb yuav sab laj engineers rau koj. Yog tias koj xav tau, peb cov engineers kuj tuaj yeem mus rau hauv koj cheeb tsam los pab koj daws qhov teeb meem
Q: Koj puas muaj ntawv pov thawj?
A: Peb muaj CE, SGS, BV ntawv pov thawj.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: 30 feem pua T / T ua ntej, 70 feem pua ua ntej xa zaub mov tom qab kuaj xyuas.
Q: Koj puas muaj koj lub Hoobkas?
A: Yog, peb muaj. Txais tos tuaj xyuas peb lub Hoobkas!
Hais txog Packing & Shipping
• Tom qab cov khoom tsim tawm thiab tau txais cov nyiaj them kawg, peb yuav npaj cov khoom xa tuaj sai li sai tau. Cov neeg siv khoom tuaj yeem xaiv hom kev thauj mus los (los ntawm hiav txwv, los ntawm tsheb ciav hlau, los ntawm huab cua, thiab lwm yam), thiab peb tuaj yeem tshawb xyuas tus nqi thauj khoom rau cov neeg siv khoom siv.
Cim npe nrov: industrial starch ua tshuab, Tuam Tshoj muaj hmoov txhuv nplej siab ua tshuab manufacturers, factories
