Pob kws Puff Stick Ua Tshuab
1. Ntawv pov thawj: CE ISO SGS
2.Motor: Siemens, ABB lossis Suav Hom
3.Electrical Cheebtsam: Schneider, Delta, lossis Suav hom
4. Peev xwm: 100-500kg/h
5.Screw hom: ntxaib-ntsia hlau tiav ntsia hlau, ua ke ntsia hlau
6.Material: stainless hlau
Hauj lwm lawm
Product Detail

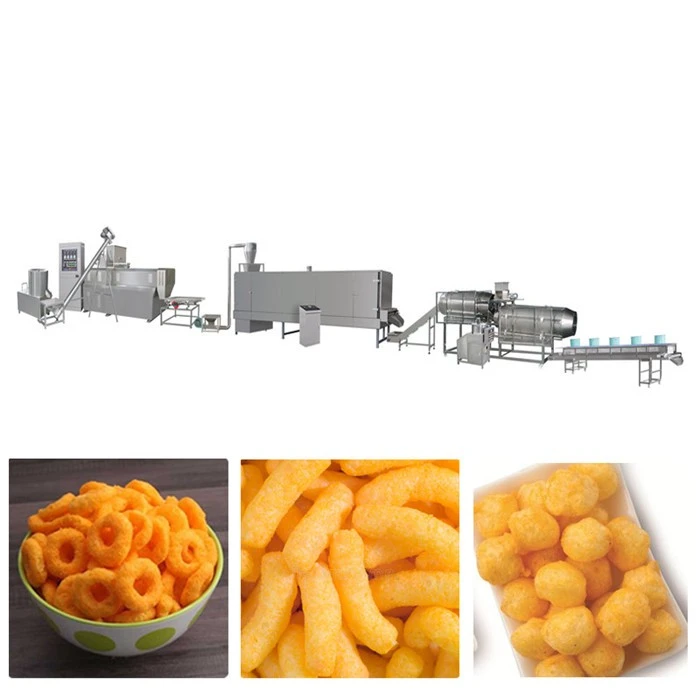

Pob kws puff stick ua tshuab
Pob kws puff stick ua tshuab yog ib hom tshiab ntxaib ntsia hlau extruding zaub mov tshuab kawm thiab tsim los ntawm peb tus kheej nyob rau hauv lub hauv paus ntawm kev kawm los ntawm advanced technology nyob rau hauv lub ntiaj teb no kom nws cov kev ua tau zoo thiab zoo ntawm cov khoom ob leeg mus txog rau lub siab tshaj plaws nyob rau hauv lub ntiaj teb no. Cov kab no yuav ua tiav kev sib xyaw, extruding, txiav, txau, thiab ua haujlwm hauv onepass kev ua haujlwm tau txais. Qhov no muaj cov yam ntxwv ntawm ntau hom, hloov tau yooj yim collocation, uas nws kim heev siv cov ntaub ntawv, ntau yam khoom thiab ua haujlwm yooj yim.
Khoom qauv
pob kws puff stick ua tshuab tuaj yeem tsim cov qauv hauv qab no los ntawm kev hloov pwm:
Flow Chart
Pob kws puff stick ua tshuab suav nrog kev sib xyaw, extruding, ziab, flavoring thiab packing, pob kws khoom noj txom ncauj extruder tshuab txais ntxaib-ntsia hlau extrusion tshuab, siv pob kws hmoov nplej, nplej hmoov nplej, nplej hmoov nplej, pob kws hmoov nplej thiab lwm yam nplej hmoov nplej ua cov ntaub ntawv tseem ceeb los tsim ntau yam duab thiab ntau yam saj puffed khoom noj txom ncauj, xws li lub nplhaib puab, cheese pob, stick puab thiab hais txog. Tib cov kab ntau lawm kuj tuaj yeem tsim cov khoom noj qab zib uas tseem ceeb los ntawm kev ntxiv cov core-filling tshuab thiab shaping tshuab. Lub filling tuaj yeem yog chocolate, qab zib, txiv hmab txiv ntoo jam thiab lwm yam.Peb tuaj yeem muab cov mis dawb zoo.
Nta ntawm Puff Food Processing Line
- Nws tuaj yeem khiav tsis tu ncua rau ntau tshaj 20 teev hauv ib hnub.
- Txawv qhov chaw cua sov xaiv.
- Ntiaj teb nto moo hom Siemens Baltur, xyuas kom meej lub tshuab ua haujlwm.
- Tag nrho cov kab siv cov ntaub ntawv stainless hlau, xyuas kom cov zaub mov zoo.
- Nrog rau kev tu tus kheej, tsis tas yuav tshem tawm cov ntsia hlau thaum tu.
- Nruab nrog kev tswj hwm kom paub txog kev ua haujlwm tsis siv neeg, saib xyuas lub sijhawm tiag tiag, thiab txuag nqi zog.
Technical Parameters
(Peb muaj ntau yam khoom noj txom ncauj pob kws ua tshuab ua qauv rau koj xaiv)
|
Qauv |
Nruab Hwj chim |
Kev siv fais fab |
Tso zis |
Qhov loj ntawm cov kab ntau lawm |
|
TSI 65 |
74 kwv |
52 kwv |
100-150 kg/h |
17x1.3x2.2(m) |
|
TSI 70 |
105 kwv |
75 kwv |
200-260 kg/h |
20x1.5x2.2(m) |
|
TSI 85 |
205 kwv |
150 kwv |
350-500kg/h |
30x1.5x2.6(m) |
Main Tshuab Paub meej
(Cov khoom siv ntawm cov pob kws ua khoom noj txom ncauj yog ua los ntawm cov npe nrov. Peb kuj tuaj yeem kho lawv raws li koj xav tau ntawm cov khoom siv tshuab thiab cov khoom siv hluav taws xob.)
Tov khoom
Txhawm rau sib tov cov ntaub ntawv raw khoom sib npaug, ceev ceev, tsis muaj dej.
Hom: Vertical thiab kab rov tav hom
Lub cev muaj zog: 3kw, 4kw, 7.5kw thiab lwm yam.
Khoom siv: stainless hlau
Extruder
Txhawm rau extrude cov ntaub ntawv raw thiab ua rau lawv mus rau qhov xav tau zoo thiab qhov loj ntawm cov khoom noj txom ncauj puff los ntawm pwm.
Qauv: DSE65, DSE70, DSE85
Muaj peev xwm: 100kg / h txog 500kg / h
Khoom siv: stainless hlau
Lub tshuab ziab khaub ncaws
Ci puff khoom noj txom ncauj.
Hom: hluav taws xob, chav, roj hluav taws xob, hluav taws xob hluav taws xob hluav taws xob
Model: KX-3-5, KX-5-5, KX-5-8, KX-7-5, KX-7-8
Muaj peev xwm: 100kg / h txog 10 tuj / h
Khoom siv: stainless hlau
Flavoring roller
Yuav kom sib tov cov roj thiab flavors ntawm qhov chaw ntawm cov khoom noj.
Hom: ib leeg thiab ob chav flavoring nruas
Muaj peev xwm: 100kg / h txog 500 kg / h
Khoom siv: stainless hlau
Txias conveyor
Kom txias thiab thauj cov zaub mov tiav.
Khoom siv: stainless hlau
Peb tus engineer
Yongxin Liu(First Class Senior Engineer)
Kawm tiav tsev kawm ntawv: Shanghai East China University of Science thiab Technology
Kev ua tau zoo: Rau 20 xyoo, nws tau mob siab rau nws tus kheej rau kev tshawb fawb ntawm cov khoom noj txom ncauj tshuab, ua ntau tshaj 30 txoj haujlwm thiab kov yeej ntau yam kev nyuaj rau lub tuam txhab.
Enxin Xu (Second Class Senior Engineer)
Kawm tiav tsev kawm ntawv: Harbin University of Science thiab Technology
Kev ua tau zoo: Mr. Xu tshwj xeeb hauv cov tshuab khoom noj tsiaj (miv / ntses / dev thiab lwm yam) kev tshawb fawb thiab kev tshawb fawb. Ob xyoos dhau los, ua tiav 3 txoj haujlwm ntawm 3-8 tons / teev thiab 20 cov haujlwm ntawm 0.5-2 tons / teev cov kab ntau lawm ua haujlwm.
Sibin Xin (Tom qab-muag Group Ⅰ)
Kev ua tau zoo: Nrog rau 13 Xyoo Kev Ua Haujlwm Zoo, nws tau mus rau tsawg kawg 80 lub teb chaws, tau txais kev pabcuam ntau dua 200 tus neeg siv khoom thoob ntiaj teb, thiab tau txais kev qhuas zoo los ntawm cov neeg siv khoom.
Guoqiang ntxuam (Tom qab-muag pab pawg Ⅱ)
Kev ua tau zoo:18 xyoo kev xyaum ua haujlwm, ua siab ntev thiab muaj lub luag haujlwm, nws tau mus rau tsawg kawg 30 lub teb chaws, muab kev tshaj lij thiab kev pab cuam tom qab muag zoo rau ntau tshaj 100 tus neeg siv khoom thoob plaws lo lus tsis muaj qhov yuam kev.
FAQ
1. Cov ntaub ntawv dab tsi peb yuav tsum tau muab ua ntej tshaj tawm?
Xa peb cov duab ntawm cov duab ntawm cov khoom koj xav tsim, qhia peb cov khoom tsim tawm, seb puas muaj lub Hoobkas, lub Hoobkas loj, muaj qhov hluav taws xob, qhov twg lub zog yog qhov yooj yim dua rau koj, thiab seb koj puas muaj kev tshwj xeeb rau cov tshuab. .
2. Dab tsi yog lub zog noj ntawm tag nrho cov kab ntau lawm?
Lub peev xwm sib txawv thiab cov tshuab teeb tsa sib txawv. Peb yuav muab cov lus qhia ntxaws ntxaws rau koj thiab qhia koj lub zog siv ntawm cov kab ntau lawm uas koj xav tau.
3. Yuav ua li cas rau nruab cov kab ntau lawm?
Peb yuav muab cov lus qhia kev teeb tsa, kev teeb tsa cov yeeb yaj kiab, los pab cov neeg siv khoom hauv kev teeb tsa, thiab muab cov lus hauv zos rau koj.
4. Peb tuaj yeem paub qhov zoo ntawm lub tshuab li cas?
Peb tuaj yeem muab lub tshuab kuaj video ntawm koj lub tshuab, thiab cov yeeb yaj kiab ntawm peb cov neeg siv khoom ntsuas ntawm peb lub tshuab rau koj siv.
Packing & Shipping
• Sab hauv pob yog yas zaj duab xis, sab nraud yog cov ntaub ntawv ntoo lossis plywood (raws li tus neeg siv khoom xav tau).
• Tsuas yog yas zaj duab xis liab qab ntim nrog ntoo pallets.
• Shipping, tsheb ciav hlau, nthuav qhia, lossis raws li cov neeg xav tau.
