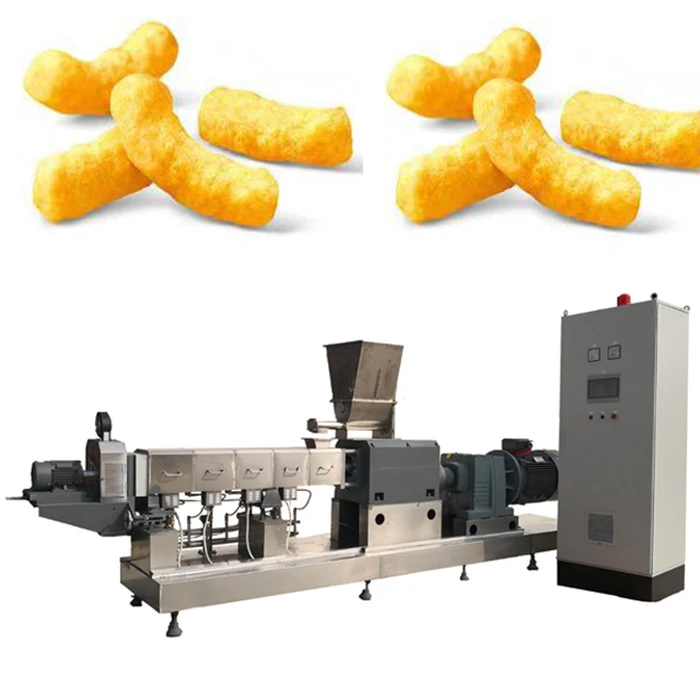

Pob kws Puff Qhuav Tshuab
1. Ntawv pov thawj: CE ISO SGS
2.Motor: Siemens, ABB lossis Suav Hom
3.Electrical Cheebtsam: Schneider, Delta, lossis Suav hom
4. Peev xwm: 100-500kg/h
5.Screw hom: ntxaib-ntsia hlau tiav ntsia hlau, ua ke ntsia hlau
6.Material: stainless hlau
Hauj lwm lawm
tshuab video
khoom noj txom ncauj zaum kawg Sample
Cov
Kev nthuav qhia kab ntau lawm
pob kws puff ntau lawm tshuab muaj tsib txheej txheem tseem ceeb. Mixing -- Extruding -- Qhuav -- Flavoring -- Ntim
Cov khoom siv raw yuav sib npaug nrog dej. Tom qab ntawd cov duab sib txawv ntawm cov khoom yuav raug tsim los ntawm extruding. Tom qab extrusion, cov khoom no yuav nkag mus rau hauv lub tshuab ziab khaub ncaws rau dej evaporation. Nrog kev pab los ntawm ob chav tumbler flavoring tshuab, cov neeg muas zaub yuav tau txais ntau yam qab flavors.
① Tov khoom → ② Screw conveyor → ③ Extruder → ④ Cua conveyor → ⑤ Tshuab ziab khaub ncaws → ⑥ Hoister → ⑦ Flavoring kab → ⑧ Txias conveyor
cov ntsiab lus ntawm extruder
1. Kev hloov pauv siab ntawm kev faib;
2. Lub neej ntev ntawm cov tshuab;
3. Cov khoom lag luam dav tuaj yeem ua los ntawm tib lub tshuab;
4. Kev nqis peev tsawg, cov txiaj ntsig siab;
5. Kev ua haujlwm yooj yim;
6. Kev ua haujlwm-txuag;
7. Stainless hlau tag nrho;
8. Siab automation;
9. Cov khoom siv raw khoom yooj yim kom tau txais thoob plaws ntiaj teb;
10. Daim ntawv pov thawj CE.
11. Tshuab qhov chaw hom tuaj yeem qhia tau.
qauv extruder
(Peb muaj ntau yam khoom noj txom ncauj pob kws ua tshuab ua qauv rau koj xaiv)
|
Qauv |
Nruab Hwj chim |
Kev siv fais fab |
Tso zis |
Qhov loj ntawm cov kab ntau lawm |
|
TSI 65 |
74 kwv |
52 kwv |
100-150 kg/h |
17x1.3x2.2(m) |
|
TSI 70 |
105 kwv |
75 kwv |
200-260 kg/h |
20x1.5x2.2(m) |
|
TIAB SA 85 |
205 kwv |
150 kwv |
350-500kg/h |
30x1.5x2.6(m) |
Tshuab configuration
Tov khoom
Txhawm rau sib tov cov ntaub ntawv raw khoom sib npaug, ceev ceev, tsis muaj dej.
Hom: Vertical thiab kab rov tav hom
Lub cev muaj zog: 3kw, 4kw, 7.5kw, thiab lwm yam.
Khoom siv: stainless hlau
Extruder
Txhawm rau extrude cov ntaub ntawv raw thiab ua rau lawv mus rau qhov xav tau zoo thiab qhov loj ntawm cov khoom noj txom ncauj puff los ntawm pwm.
Qauv: DSE65, DSE70, DSE85
Muaj peev xwm: 100kg / h txog 500kg / h
Khoom siv: stainless hlau
Lub tshuab ziab khaub ncaws
Ci puff khoom noj txom ncauj.
Hom: hluav taws xob, chav, roj hluav taws xob, hluav taws xob hluav taws xob hluav taws xob
Model: KX-3-5, KX-5-5, KX-5-8, KX-7-5, KX-7-8
Muaj peev xwm: 100kg / h txog 10 tuj / h
Khoom siv: stainless hlau
Flavoring roller
Sib tov cov roj thiab flavors ntawm qhov chaw ntawm cov khoom noj.
Hom: ib leeg thiab ob chav flavoring nruas
Muaj peev xwm: 100kg / h txog 500 kg / h
Khoom siv: stainless hlau
Txias conveyor
Kom txias thiab thauj cov zaub mov tiav.
Khoom siv: stainless hlau
ntxaib ntsia hlau zoo
Lub ntxaib-ntsia hlau extruder yog ib lub tshuab nrov tshaj plaws siv los ua cov khoom noj txom ncauj. Cov cuab yeej zoo kawg no tau tsim los hloov cov khoom xyaw nyoos rau hauv cov khoom noj txom ncauj qab, uas txhua tus nyiam.
Cov txheej txheem ntawm kev ua cov khoom noj txom ncauj yog pib nrog kev sib xyaw ntawm tag nrho cov khoom xyaw, xws li hmoov nplej, hmoov txhuv nplej siab, thiab dej. Cov ntaub ntawv no yog tom qab ntawd muab tso rau hauv ntxaib-ntsia hlau extruder, qhov chaw uas lawv tau rhuab los ntawm kev sib txhuam sab hauv thaum lawv tab tom ua tiav. Qhov cua sov no ua rau cov ntaub ntawv nthuav dav thiab tsim lub hauv paus rau peb cov khoom noj qab zib, puffed.
Lub ntxaib-ntsia hlau extruder ua haujlwm los ntawm kev siv ob qhov sib txuas ntawm cov ntsia hlau uas tig mus rau qhov sib txawv. Raws li cov khoom txav los ntawm extruder, cov ntsia hlau compresses thiab tom qab ntawd yuam nws los ntawm qhov qhib me me hu ua tuag. Qhov no ua rau cov khoom nthuav dav sai, tsim cov yam ntxwv lub teeb thiab crispy kev ntxhib los mos ntawm puffed khoom noj txom ncauj.
Cov txheej txheem extrusion tuaj yeem ntxiv qhov tshwj xeeb tsw thiab textures rau cov khoom noj txom ncauj. Qhov no tuaj yeem ua tiav los ntawm kev ntxiv seasoning thiab lwm yam khoom xyaw, ua ntej lossis thaum lub sijhawm ua haujlwm. Piv txwv li, cheese hmoov, txuj lom, thiab lwm yam ntuj tsim los yog khoom qab zib tuaj yeem muab tso rau hauv lub khob noom cookie los yog txau rau cov khoom noj txom ncauj thaum lawv tawm hauv lub extruder.
Hauv kev xaus, kev siv lub ntxaib-ntsia hlau extruder yog qhov tseem ceeb rau kev tsim cov khoom noj txom ncauj qab. Kev sib xyaw ua ke ntawm cov cua sov, siab, thiab cov khoom xyaw tshwj xeeb tuaj yeem tsim ntau yam khoom qab zib thiab textures uas txaus siab rau cov neeg ntawm txhua lub hnub nyoog. Txawm hais tias koj nyiam cov khoom noj qab zib lossis cov khoom noj qab zib, muaj qee yam rau koj txaus siab rau hauv lub ntiaj teb cov khoom noj txom ncauj.
Peb qhov zoo
① Kev sib tham txog cov khoom siv, txheej txheem, ntim khoom, thiab cov qauv tsim qauv ntawm cov nroj tsuag ua ntej qhov project. Peb kuj tuaj yeem them nyiaj mus ntsib tus neeg siv khoom los soj ntsuam qhov loj thiab thaj tsam ntawm lub rooj cob qhia, tom qab ntawd kho qhov tsim nyog thiab kev tshawb fawb ntawm cov kab ntau lawm thiab cov khoom siv, thiab paub txog qhov project turnkey tag nrho;
② Kev ua haujlwm ntawm cov khoom siv hauv qhov project, Kev sab laj, thiab kev cob qhia;
③ Muab cov kev daws teeb meem rau koj cov khoom tsim tau zoo thiab phim koj cov kev xav tau;
④ Peb tuaj yeem muab kev tsim tshwj xeeb thiab tsim khoom raws li koj xav tau;
⑤ Peb tuaj yeem pab koj hloov kho thiab rov kho cov kab khoom uas twb muaj lawm kom tshem tawm qhov tsis muaj zog thiab txhim kho kev tsim khoom;
⑥ Peb lub rooj cob qhia ua qauv qhia ua ke nrog kev sim, ua qauv qhia, thiab kev cob qhia los muab kev pabcuam tus nqi ntxiv rau koj;
⑦ Peb lub rooj cob qhia ua qauv qhia tuaj yeem kuaj koj cov khoom thiab cov txheej txheem los xaiv cov txheej txheem tsim nyog rau koj. Koj tuaj yeem sim koj daim ntawv qhia tshiab thiab thev naus laus zis ntawm no.
Packing thiab shipping
Cim npe nrov: pob kws puff ntau lawm tshuab, Tuam Tshoj pob kws puff ntau lawm tshuab manufacturers, factories
