Pob kws Fried Snack Making Machine
1. Ntawv pov thawj: CE ISO SGS.
2. Lub cev muaj zog: Siemens, ABB lossis Suav Hom.
3. Cov zis: 100-150kg/h, 200-250kg/h…….
4. Hom Extruder: Twin-Screw Extruder.
5. Voltage: Customization.
Hauj lwm lawm
Cov khoom video
Khoom raw khoom
pob kws hmoov nplej, hmoov nplej, nplej hmoov nplej, pob kws hmoov nplej thiab lwm yam nplej hmoov nplej thiab lwm yam.
khoom noj txom ncauj
Cov khoom lag luam flow chart
Tov khoom → ntsia hlau conveyor → Extruder → txiav tshuab → Hoister → Fryer → Vibration Deoiling → Hoister → Ib leeg rau cov menyuam → Txias → Packing
technical parameter
|
Qauv |
Nruab Hwj chim |
Kev siv fais fab |
Tso zis |
Qhov loj ntawm cov kab ntau lawm |
|
TSI 65 |
74 kwv |
52 kwv |
100-150 kg/h |
18x4.5x2.4(m) |
|
TSI 70 |
105 kwv |
75 kwv |
200-260 kg/h |
26x1.5x3.5(m) |
Cov txheej txheem khoom
1. Yog tias koj cov khoom siv raw yog mov lossis lwm yam cereal, ua ntej koj xav tau lub tshuab grinder rau milling lawv.
2. Tom qab lub tshuab milling, peb xav tau lub tshuab tov khoom los sib xyaw cov khoom sib txawv, do zoo cov ntaub ntawv.
3.Cov ntaub ntawv yog nqa mus rau extruder los ntawm cov ntsia hlau convery. Nyob rau hauv lub tshuab extruder, cov ntaub ntawv yog extruded thiab nthuav, thiab tau txais cov khoom.
4.Tom qab txiav cov khoom rau hauv qhov xav tau ntev thiab cov duab.
5. Tom qab ntawd, cov khoom raug nqa mus rau hauv lub lauj kaub rau kib rau lawv.
6. Tom qab cov txheej txheem kib, siv ib lub nruas kom tsw cov zaub mov.
7.kawg, siv lub tshuab cua txias kom txias cov khoom kub.
lub ntsiab tshuab cov ntsiab lus
(Cov khoom siv ntawm cov pob kws ua khoom noj txom ncauj yog ua los ntawm cov npe nrov. Peb kuj tuaj yeem kho lawv raws li koj xav tau ntawm cov khoom siv tshuab thiab cov khoom siv hluav taws xob.)

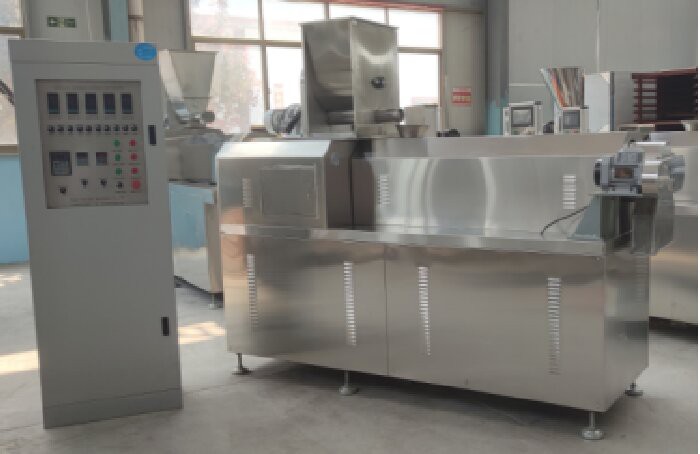

Extruder
Txhawm rau extrude cov ntaub ntawv raw thiab ua rau lawv mus rau qhov xav tau cov duab thiab qhov loj ntawm cov khoom noj txom ncauj puff los ntawm pwm.
Qauv: DSE65, DSE70, DSE85
Muaj peev xwm: 100kg / h txog 500kg / h
Khoom siv: stainless hlau
Txiav tshuab
tsim
yooj yim rau kev khiav lag luam Khoom siv: stainless hlau
Fryer
Frying cov khoom noj tsis tu ncua: stainless hlau
peb daim ntawv pov thawj
vim li cas xaiv peb
1. Peb tuaj yeem xa koj cov kab ntau lawm video ntawm peb cov neeg siv khoom koom tes rau koj siv.
2. Peb tuaj yeem muab kev soj ntsuam ntawm peb cov cuab yeej siv los ntawm peb cov neeg siv khoom uas twb tau ua kev sib cog lus rau koj siv.
3. Yog tias koj xaiv peb, koj tsis tas yuav txhawj xeeb txog kev thauj mus los thiab teeb meem kev teeb tsa, Peb muaj kev ruaj ntseg logistics thiab kev thauj mus los, thiab kev pov hwm ntxiv los xyuas kom muaj kev nyab xeeb ntawm cov khoom siv.
4. Peb lub tuam txhab muaj kev nplua nuj export, ua tiav kev tsim nyog, CE, SGS, OA thiab lwm yam ntawv pov thawj
hais txog shipping
• Sab hauv pob yog yas zaj duab xis, sab nraud yog cov ntaub ntawv ntoo lossis plywood (raws li tus neeg siv khoom xav tau).
• Tsuas yog yas zaj duab xis liab qab ntim nrog ntoo pallets.
• Shipping, tsheb ciav hlau, nthuav qhia, lossis raws li cov neeg xav tau.
