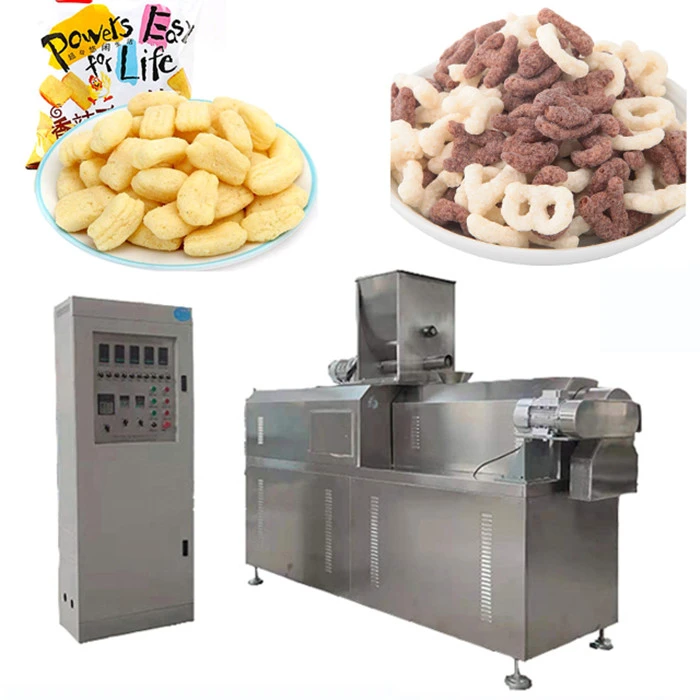

Cheese Puff Machinery
1. Ntawv pov thawj: CE ISO SGS.
2. Lub cev muaj zog: Siemens, ABB lossis Suav Hom.
3. Voltage: 380v / 50hz peb-theem lossis customized.
4. Cov duab: Cov neeg siv khoom xav tau.
5. Warranty: 1 Xyoo.
Hauj lwm lawm
Khoomnthuav dav
tsis siv neegcheese puff tshuabkab ntau lawm
Khoom qauv
puff zaub mov extruder kab tuaj yeem tsim cov qauv hauv qab no los ntawm kev hloov pwm
Flow daim ntawv qhia
①Mixer → ②Screw conveyor → ③ Extruder → ④air conveyor → ⑤ Dryer → ⑥hoister → ⑦ Flavoring kab → ⑧ Txias conveyor
Txoj cai ntawm puffing extruder
Cov khoom nkag mus rau hauv lub thoob ntawm lub extruder los ntawm lub hopper, thiab nrog rau kev sib hloov ntawm cov ntsia hlau, kev hloov ntawm cov ntsia hlau qauv, qhov nce ntawm lub siab, thiab cov cua kub sab nraud ntawm lub thoob thiab cov khoom ntawm ob lub screws thiab kev sib txhuam. Nruab nrab ntawm cov ntsia hlau thiab lub thoob Nyob rau hauv muaj zog nplawm, sib tov thiab shearing, qhov kub ntawm cov khoom nce mus rau tag nrho gelatinize cov khoom raw cov hmoov txhuv nplej siab. Nyob rau hauv lub tes tsho kaw, cov dej yuav tsis evaporate sai. Thaum cov khoom yog instantly extruded los ntawm ib tug pwm nrog ib tug tej yam zoo li, lub siab tso tawm sai sai. Cov khoom nthuav dav raws li, thiab cov dej noo sai sai poob ntawm cov khoom, yog li cov khoom lag luam tau txias sai li ntawm 80 degree, yog li ua kom zoo li tus thiab tswj nws cov duab nthuav dav.
Technical Parameters
(Peb muaj ntau yam khoom noj txom ncauj pob kws ua tshuab ua qauv rau koj xaiv)
|
Qauv |
Nruab Hwj chim |
Kev siv fais fab |
Tso zis |
Qhov loj ntawm cov kab ntau lawm |
|
TSI 65 |
74 kwv |
52 kwv |
100-150 kg/h |
17x1.3x2.2(m) |
|
TSI 70 |
105 kwv |
75 kwv |
200-260 kg/h |
20x1.5x2.2(m) |
|
TSI 85 |
205 kwv |
150 kwv |
350-500kg/h |
30x1.5x2.6(m) |
Main Machine cov ntsiab lus
(Cov khoom siv ntawm pob kws khoom noj txom ncauj ua tshuab yog ua los ntawm cov npe nrov. Peb kuj tuaj yeem kho lawv raws li koj xav tau ntawm cov khoom siv tshuab thiab cov khoom siv hluav taws xob.)
Extruder (ntsuas ntxaib)
Square chim hom
Qauv: DSE65F, DSE75F, DSE85F
Muaj peev xwm: 100kg / h txog 500kg / h
Khoom siv: stainless hlau
Lub tshuab ziab khaub ncaws
Baking puff snacks food.Type: hluav taws xob, chav, gas raug rho tawm haujlwm, diesel raug rho tawm cua sov hom
Model: KX-3-5, KX-5-5, KX-5-8 KX-7-5, KX-7-8
Muaj peev xwm: 100kg / h txog 10 tuj / h
Khoom siv: stainless hlau
Flavoring roller
Sib tov cov roj thiab tsw ntawm cov khoom noj.Type: ib leeg thiab ob chav flavoring nruasCapacity: 100kg/h txog 500 kg/hMaterial: stainless hlau
Txias conveyor
Kom txias thiab thauj cov zaub mov tiav.
Khoom siv: stainless hlau
FAQ
Q: Kuv puas tuaj yeem saib lub Hoobkas los ntawm kev yees duab?
A: Yog, yog tias nws tsis yooj yim rau koj tuaj rau peb lub Hoobkas, koj tuaj yeem saib lub Hoobkas hauv online
Q: Ntxiv rau qhov hluav taws xob, puas muaj lwm yam khoom siv hluav taws xob uas tuaj yeem xaiv tau?
A: Peb tuaj yeem muab lub tshuab ziab khaub ncaws rau koj xaiv
Q: Puas muaj cov khoom hnav?
A: Yog lawm, thaum peb muab cov lus hais rau koj, peb yuav muab cov npe coj mus kuaj
Q: Muaj pes tsawg hnub lub voj voog installation siv sijhawm?
A: Yog tias cov ntaub ntawv teeb tsa tau npaj txhij, kev teeb tsa tuaj yeem ua tiav hauv ib lub lis piam
Packing & Shipping
• Sab hauv pob yog yas zaj duab xis, sab nraud yog cov ntaub ntawv ntoo lossis plywood (raws li tus neeg siv khoom xav tau).
• Tsuas yog yas zaj duab xis liab qab ntim nrog ntoo pallets.
• Shipping, tsheb ciav hlau, nthuav qhia, lossis raws li cov neeg xav tau.
