Dog Food Pellet Making Machine

1. Ntawv pov thawj: CE ISO SGS.
2. Lub cev muaj zog: Siemens, ABB lossis Suav Hom.
3. Cov ntsiab lus muag tseem ceeb: Lub neej ua haujlwm ntev.
4. Kev siv: pub tshuab.
5. Kev Pabcuam: 24h Online.
6. Ntim: Ntoo Case.

Xa kev nug

Hauj lwm lawm

Product Video

Yam khoom

Aub khoom noj tshuab cov kab ntau lawm tuaj yeem tsim tau txhua yam khoom noj tsiaj thiab ntses pub, xws li cov khoom noj miv, zaub mov dev, noog zaub mov, ntau hom ntab thiab ntses ntses pub, thiab lwm yam. Nws siv cov hmoov nplej, zaub, txiv hmab txiv ntoo, nqaij, pob txha, ntses noj, tsiaj rog, thiab ntsev ua raw khoom. Cov khoom loj los ntawm 1mm mus rau 30mm tuaj yeem tsim tau, yog li tsim nyog rau cov tsiaj thiab cov tsiaj muaj hnub nyoog sib txawv.

Dog zaub mov pellet-ua tshuab. Qhov no yog ib qho kev daws teeb meem tshiab uas peb lub tuam txhab txuas ntxiv hloov tshiab, txhawm rau txhawm rau txhawm rau txhim kho cov khoom noj tsiaj. Cov kab ntau lawm yog siv cov hmoov nplej, nplej hmoov nplej, ntses pluas mov, nqaij noj, thiab qee cov khoom noj ntxiv raws li cov khoom siv tseem ceeb, thiab ua rau cov khoom noj khoom haus zoo kawg nkaus los ntawm kev sib tov, extrusion, ci, seasoning, thiab lwm yam txheej txheem.

Dog Food Raw Khoom

Feem ntau cov hmoov nplej pob kws, nplej hmoov nplej, nplej hmoov nplej, ntses noj, nqaij thiab pob txha noj mov thiab lwm yam. Los yog siv cov pob kws granules, nplej granules, nplej granules, soybean pluas mov thiab lwm yam hauv av nplej hmoov. Lwm cov as-ham kuj tuaj yeem ntxiv.

Flow Chart thiab Model

Raw cov txheej txheem - Extrusion system - ziab system - Flavoring system - Txias system - Packing system

Qauv	Nruab Hwj chim	Kev siv fais fab	Tso zis	Loj
DSE - 65	74 kwv	52 kwv	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kwv	75 kwv	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205 kwv	150 kwv	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165 kwv	90 kwv	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280 kwv	132 kwv	3000-3500kg/hr	45x4.5x6(m)

Peb muaj ntau yam khoom noj dev ua tshuab ua qauv rau koj xaiv, Peb kuj tuaj yeem kho lub tshuab raws li koj qhov kev xav tau tshwj xeeb thiab peev nyiaj txiag, txawm tias nws yog lub peev xwm me me lossis loj dua. (100-5000kg ib teev)

Nta ntawm Dog Food Making Machine

Lub npe: Mixer

Lub zog loj: 5.5kw

Cov zis: 300kg/time (6-10mins/time)

Khoom siv: Stainless hlau

Muaj nuj nqi: Ntxiv cov crushed raw cov ntaub ntawv mus rau ib qho kev faib ua feem ntawm cov dej los sib tov cov raw khoom, yooj yim rau kev khiav lag luam.

Nrog pneumatic valve, qhov sib tov ntawm raw cov ntaub ntawv tiav thiab lub qhov hluav taws xob tau qhib.

Lub npe: DSE75 ob chav ntsia hlau extruder

Lub cev muaj zog: 37kw (ntau zaus tswj)

Pub lub cev muaj zog: 0.75kw (ntau zaus tswj)

Teb txiav lub cev muaj zog: 0.75kw (frequency tswj)

Tag nrho cov cua sov zog: 14kw

Cov zis: 300 ~ 350kg / h

Ntsia hlau ntev: 1520mm

Screw txoj kab uas hla: 75mm

Cov khoom siv ntsia hlau: 38CrMoAl

Roj twj tso kua mis lub cev muaj zog: 0.37kw, nrog roj tank, yuam lubrication

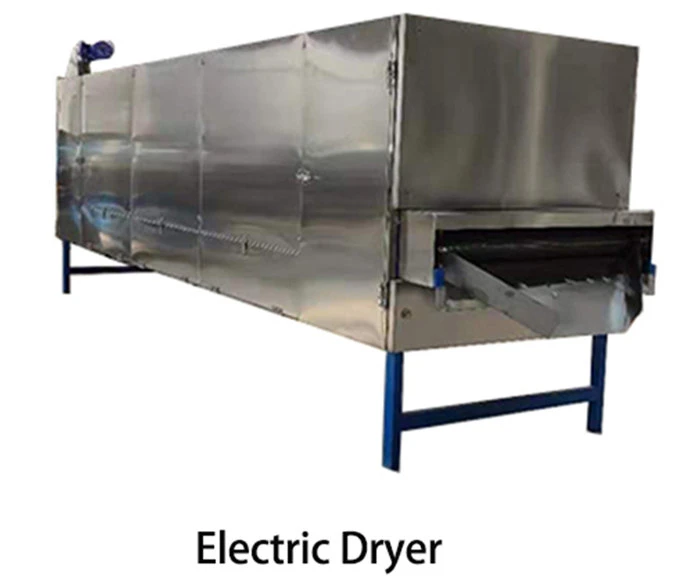

Lub npe: Electric tshuab ziab khaub ncaws

Cua sov: hluav taws xob cua sov

Cov kiv cua: 0.37kw

Nqus cua tso cua: 0.37kw

Function: Qhuav cov khoom kom tshem tawm cov dej noo thiab ua kom lub neej txee.

Siv zaus hloov dua siab tshiab kev tswj, qhov ceev yog qeeb, zoo ib yam, thiab ruaj khov uas muaj kev tiv thaiv zoo ntawm lub cev muaj zog, bearings, thiab lwm yam. thiab cov saw hlau kis tau tus mob ua rau cov khoom ziab lub sij hawm ntev dua, qhov ziab kom qhuav zoo, thiab kev siv cua sov yog siab.

Lub npe: 1 ~ 5kg / hnab ntim tshuab

1. Ntim ceev: 250 ~ 300 packs / teev rau ib lub thoob nplai.

450 ~ 600 hnab / teev rau ob lub thoob nplai

2. Dynamic raug: ntxiv rau 0.2 feem pua .

3. Fais fab mov voltage: AC220V, 50HZ.

4. Gas qhov siab: 0.4 ~ 0.6Mpa.

5. Gas qhov poob: 0.05m3/min.

1. Voltage nyob rau hauv Suav teb: peb-theem, 380V / 50Hz, ib theem: 220V / 50Hz, tau kawg, peb kuj tuaj yeem kho lub tshuab lub cev muaj zog raws li lub zog hauv zos ntawm cov neeg siv khoom hauv ntau lub teb chaws.

2. Khoom siv: stainless hlau #304, thickness: 1-3.mm.

3. Lub cev muaj zog: Siemens hom lossis Suav nto moo hom.

4. Lub npe tseem ceeb ntawm cov khoom siv hluav taws xob: Siemens lossis CHNT hom lossis Schneider.

5. Inverter: Delta hom lossis Pioneer lossis lwm hom.

Peb Qhov Zoo

Cov khoom noj dev ntau lawm kab yog ib qho ntawm cov lag luam tseem ceeb ntawm Shandong Forward txij thaum nws tsim, feem ntau yog rau kev tsim khoom ntawm ntau yam khoom noj tsiaj. Peb muaj kev paub dhau los hloov koj lub tswv yim ua lag luam rau hauv kev muaj tiag:

1. Customized tsim. Peb muaj peb tus kheej tus qauv tsim rau cov khoom noj khoom haus ntau lawm kab, feem ntau, peb yuav pom zoo rau koj tus qauv tsim, tab sis nws tsis tau txhais hais tias qhov kev tsim no tuaj yeem siv rau txhua tus neeg siv khoom, yog li peb yuav tsum sib txuas lus nrog koj ntxiv, Shandong Forward engineers tuaj yeem kho cov kab ntau lawm raws li koj qhov kev xav tau tshwj xeeb.

2. Ib qho kev daws teeb meem. Raws li cov chaw tsim khoom noj tsiaj tsiaj, Shandong Forward tuaj yeem tsim tag nrho cov tshuab koj xav tau ntawm cov khoom noj miv thiab cov khoom siv ntxiv. Piv txwv li, kev txhawb nqa cov cav tov xws li shredders thiab ntim tshuab, peb muaj cov neeg muag khoom uas tau koom tes nrog peb ntau xyoo. Qhov no txhais tau tias koj txuag lub sijhawm yuav thiab kev thaj yeeb ntawm lub siab yog tias cov khoom seem ntawm koj lub tshuab yuav tsum tau hloov yav tom ntej.
