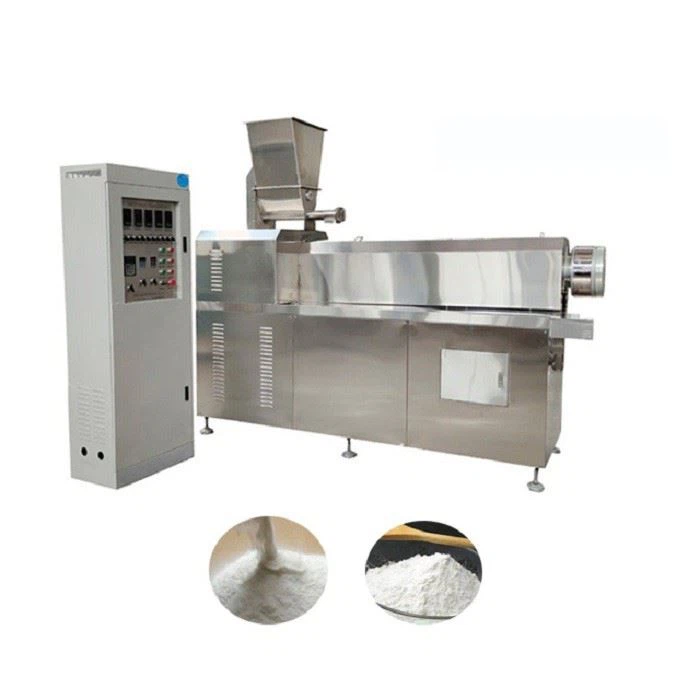

Ua kom tiav pob kws Starch Production Line

Daim ntawv pov thawj: CE SGS ISO
Lub cev muaj zog hom: Siemens lossis Suav hom
Cov khoom siv hluav taws xob: Schneider, Delta, lossis Suav hom
Peev xwm: 400-500kg/h
Voltage: peb theem 380v 50hz (tuaj yeem kho tau)
Khoom siv: stainless hlau
Screw hom: Integral ntsia hlau / sib txuas ntsia hlau
Extruder hom: Twin ntsia hlau extruder
Hom: Square chim / round chim

Xa kev nug

Hauj lwm lawm

Cov duab khoom

Pregelatinized starch yog ib hom ntawm cov hmoov txhuv nplej siab hloov tau yooj yim thiab muaj ntau yam siv. Thaum nws siv, nws tsuas yog yuav tsum tau tov nrog dej txias los ua ib qho muab tshuaj txhuam, uas tsis txhob muaj teeb meem ntawm cua sov thiab gelatinizing. Nws yog siv rau hauv ntau lub lag luam xws li tshuaj, khoom noj, tshuaj pleev ib ce, pub roj drilling, hlau casting, textile, ntawv ua, thiab lwm yam.

product-1270-635

Cov kab ntau lawm

product-1270-311

Kev tsim cov hmoov txhuv nplej siab los ntawm ntxaib-ntsia hlau extruder yog ib qho kev siv tshuab tshiab rau kev tsim cov hmoov txhuv nplej siab. Cov tshuab no siv cov ntsia hlau ntxaib extruder uas sib txuas ua haujlwm xws li kev xa khoom thiab kev sib xyaw, cua sov thiab kev kub siab, thiab shear melting raws li lub reactor los ua thermochemical denaturation ntawm starch; nws yog qhov kub thiab txias, lub sijhawm luv luv, tsis muaj dej noo, cov txheej txheem siab zog. Hauv cov txheej txheem thermochemical, ntau cov tshuaj tiv thaiv tuaj yeem nqa tawm hauv ib qho khoom siv, nrog rau qhov chaw siab-lub sij hawm tawm los; cov cuab yeej siv tau yooj yim, nyob hauv thaj chaw me me, thiab yooj yim rau kev khiav lag luam; raws li lub reactor, ntxaib-ntsia hlau extruder tuaj yeem ua oxidation, esterification, cross-linking, thiab lwm yam. Ua ke, etherified thiab lwm yam kev hloov pauv cov hmoov txhuv nplej siab, thiab tsis muaj dej phwj tuaj; ntxaib-ntsia hlau extruder muaj kev sib xyaw ua haujlwm ntau dua, kev tswj cov txheej txheem zoo, thiab cov khoom sib xws. Nws yog ib qho kev lag luam thiab ua tau zoo rau kev tsim khoom sai thiab txuas ntxiv ntawm ntau yam hloov pauv starches. txoj kev ua.

Production Line Video

Technical Parameters

Peb muaj ntau hom tshuab sib txawv ntawm cov khoom sib txawv, cov neeg siv khoom tuaj yeem xaiv raws li lawv tus kheej xav tau thiab cov xwm txheej tiag tiag

Qauv	Nruab Hwj chim	Kev siv fais fab	Muaj Peev Xwm Ntau Lawm	Dimension
DSE 65	72 kwv	50 kwv	100-150kg/h	19000 * 1300 * 2200mm
DSE 70	92 kwv	65 kwv	240-260kg/h	14000 * 2000 * 4000mm
DSE 75 F	70 kwv	50 kwv	200-250kg/h	32000 * 1100 * 1800mm
DSE85	108 kwv	76 kwv	400-500kg/h	30000 * 1500 * 2600mm

Main Machinery

Extruder

Qauv: DSE65

Main lub cev muaj zog: 22kw

Pub: 0.75kw

Rotary txiav: 0.75kw

Lub zog cua sov: 10kw

Peev xwm: 100-150kg/h

Loj: 19000 * 1300 * 2200mm

Cov khoom siv ntsia hlau: 38CrMoAl

Roj twj tso kua mis lub cev muaj zog: 0.37kw

Cua conveyor

Lub Zog: 1.1kw / 1.5kw / 2.2kw

Peev xwm: 0-2000kg/h

Khoom siv: Stainless hlau

Lub tshuab ziab khaub ncaws

Hom: Hluav taws xob hom (peb kuj muaj roj / roj hom thiab chav hom)

Model: kx-3-5, kx-5-5, kx-5-8, kx-7-5, kx-7-8

Muaj peev xwm: 100kgh txog 10tons / h

Khoom siv: Stainless hlau

Milling tshuab system

Qauv: FS{0}}

Lub cev muaj zog: 15kw

Peev xwm: 100-300 kg/h

Loj: 1.3 * 2.7 * 2m

Peb tus engineer

product-1270-424

FAQ

Q: Koj puas tuaj yeem muab kev caw rau kuv kom kuv tuaj yeem thov viza rau Tuam Tshoj?

A: Yog lawm, peb tuaj yeem ua tau.

Q: Yuav ua li cas yog tias kuv tsis muaj hluav taws xob?

A: Tsis txhob txhawj, peb tseem muaj roj / roj tshuab thiab lub tshuab ziab khaub ncaws.

Q: Kuv tuaj yeem nruab tshuab li cas?

A: Peb muaj phau ntawv qhia ntxaws los pab cov neeg siv khoom nruab tshuab. Peb cov tshuab ua tiav tag nrho thaum lawv xa khoom, thiab koj tsuas yog yuav tsum tau txuas cov xov hlau tom qab tau txais cov khoom.

Q: Koj puas yuav muab cov qauv?

A: Yog. Cov qauv kev tshaj lij yuav muab rau peb cov neeg siv khoom tom qab kev txiav txim pib.
