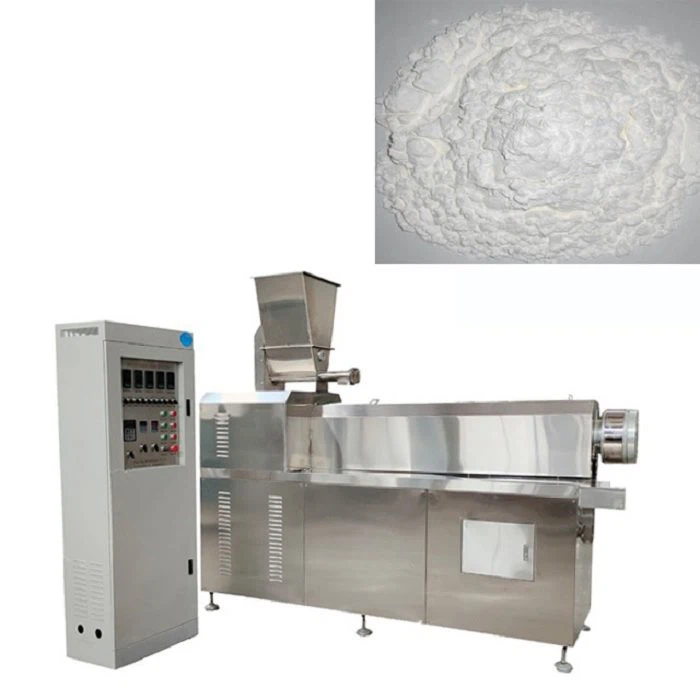

Instant Powder Ua Tshuab
Peev xwm: 200-260kg/h
Voltage: peb theem 380v 50hz (tuaj yeem kho tau)
Daim ntawv pov thawj: CE SGS ISO
Khoom siv: stainless hlau
Lub cev muaj zog: 37kw
Lub zog cua sov: 14kw
Lub cev muaj zog hom: Siemens lossis Suav hom
Inverter hom: Delta / Pioneer / Schneider
Hauj lwm lawm
Yam khoom kawg
Ua Kab Flow Daim duab
Khoom noj khoom haus hmoov yeej ib yam li hloov cov hmoov txhuv nplej siab. Tom qab cov khoom siv raw khoom sib xyaw ua ke hauv cov khoom sib tov, lawv raug thauj mus rau hauv lub extruder los ntawm cov ntsia hlau conveyor rau cua sov thiab extrusion. Tom qab lub tshuab txias txias txias cov khoom, cov cua conveyor tshuab cov khoom rau hauv lub tshuab ziab khaub ncaws. Hauv lub tshuab ziab khaub ncaws, cov khoom poob qee cov dej noo thiab dries tawm. Tom qab tawm ntawm lub tshuab ziab khaub ncaws, cov khoom yog tshuab los ntawm lub tshuab ziab khaub ncaws mus rau lub crushing unit kom crushed rau hauv hmoov.
Production Line Video
Technical Parameters
|
Qauv |
Nruab Hwj chim |
Kev siv fais fab |
Muaj Peev Xwm Ntau Lawm |
Dimension |
|
DSE 65 |
77 kwv |
50 kwv |
100-150kg/h |
19000 * 1300 * 2200mm |
|
DSE 70 |
108 kwv |
75 kwv |
200-260kg/h |
21000 * 1300 * 2200mm |
|
DSE85 |
150 kwv |
100 kwv |
400-500kg/h |
30000 * 1500 * 2600mm |
Tshuab Paub meej
Tov khoom
Lub cev muaj zog: 3/4/7.5kw
Cov zis: 25/50/100 kg/time
Lub sijhawm sib xyaw: 3-5 min/time
Khoom siv: stainless hlau
Ntsia hlau conveyor
Lub cev muaj zog: 0.75 kw
Peev xwm: phim nrog lub tshuab extruder
Khoom siv: stainless hlau
Extruder
Qauv: DSE65
Main lub cev muaj zog: 45kw
Pub: 0.75kw
Rotary txiav: 0.75kw
Lub zog cua sov: 14kw
Peev xwm: 100-150kg/h
Loj: 19000 * 1300 * 2200mm
Cov khoom siv ntsia hlau: 38CrMoAl
Roj twj tso kua mis lub cev muaj zog: 0.37kw
Cua conveyor
Lub Zog: 1.1kw / 1.5kw / 2.2kw
Peev xwm: 0-2000kg/h
Khoom siv: Stainless hlau
Lub tshuab ziab khaub ncaws
Hom: Hluav taws xob hom (peb kuj muaj roj / roj hom thiab chav hom)
Model: kx-3-5, kx-5-5, kx-5-8, kx-7-5, kx-7-8
Muaj peev xwm: 100kg / h txog 10tons / h
Khoom siv: Stainless hlau
Milling tshuab system
Qauv: FS{0}}
Lub cev muaj zog: 15kw
Peev xwm: 100-300 kg/h
Loj: 1.3 * 2.7 * 2m
FAQ
Q: Koj muaj lub tshuab ziab khaub ncaws dab tsi?
A: Peb muaj peb hom tshuab ziab khaub ncaws, feem ntau yog lub tshuab ziab khaub ncaws, roj / roj tshuab thiab tshuab ziab khaub ncaws.
Q: Hom kev xa khoom twg koj feem ntau siv?
A: Muaj peb txoj kev thauj mus los, xws li Exw, FOB, CIF. Cov neeg siv khoom tuaj yeem xaiv txoj kev xa khoom raws li lawv xav tau.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: 30 feem pua T / T ua ntej, 70 feem pua ntawm cov nyiaj ua ntej xa khoom tom qab kuaj xyuas.
Q: Peb puas tuaj yeem mus rau koj lub Hoobkas kuaj lub tshuab?
A: Tau kawg koj tuaj yeem, txais tos heev! Koj tuaj yeem qhia peb koj txoj kev npaj, peb tuaj yeem tuaj tos koj ntawm tshav dav hlau.
Q: Yuav ua li cas rau nruab lub tshuab?
A: Peb yuav muab kev teeb tsa video thiab phau ntawv qhia.
Peb Cov Neeg Siv Khoom
Hais txog Packing & Shipping
• Sab hauv pob yog yas zaj duab xis, sab nraud yog cov ntaub ntawv ntoo lossis plywood (raws li tus neeg siv khoom xav tau).
• Tsuas yog yas zaj duab xis liab qab ntim nrog ntoo pallets.
• Shipping, tsheb ciav hlau, nthuav qhia, lossis raws li cov neeg xav tau.
Cim npe nrov: Tuam Tshoj instant hmoov ua tshuab manufacturers, hoobkas
