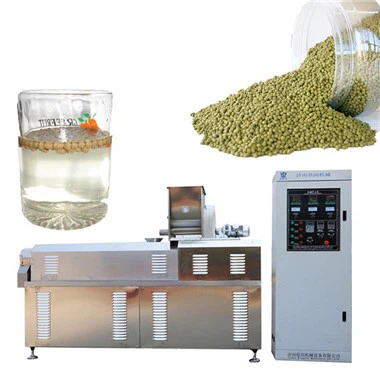

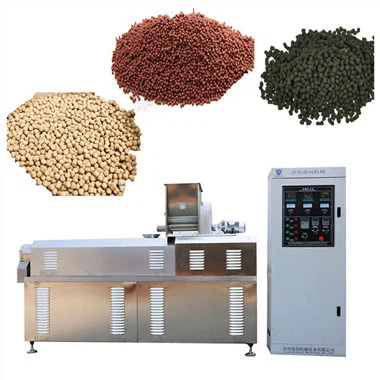

Ntses Food Processing Line
1. Ntawv pov thawj: CE ISO SGS.
2. Lub cev muaj zog: Siemens, ABB lossis Suav Hom.
3. Khoom: Ntau qhov ntau thiab tsawg, cov duab, thiab hom.
4. Voltage: 380v, 50hz, 3ph, thiab customized.
5. Muaj peev xwm: 100kg ib teev rau 5000kg ib teev thiab lwm yam.
6. Cov khoom siv raw: pob kws hmoov, hmoov nplej, hmoov nplej, ntses pob txha noj mov, nqaij qaib hmoov, glycerin, thiab lwm yam.
Hauj lwm lawm
Video noj ntses
Taw qhia
Txij li thaum nws tsim, peb lub tuam txhab tau ua tsis tu ncua kev txhim kho kev muaj peev xwm ntawm manufacturing ntxaib-ntsia hlau extruder. Cia peb cov extruder muaj ntau yam kev siv thiab tsim cov khoom zoo. Cov kab ntau lawm no tsim nyog rau kev ua thiab tsim ntau yam khoom noj, tsis yog tsuas yog ntses pub, tab sis kuj pub tsiaj, xws li dev thiab miv zaub mov.
Cov khoom kawg
Tib cov kab ntau lawm tuaj yeem tsim ntau hom ntses pub: ntab lossis tso ntses noj. paub meej, los ntawm kev hloov pwm, cov mis kuj tuaj yeem tsim lwm yam khoom noj: dev, miv, ntses thiab lwm yam.
Ntses Pub Raw Khoom
Feem ntau cov ntses pub pellets muaj cov tsiaj protein thiab cov protein cog, cog cov protein txais cov hmoov nplej, nplej mov, nplej hmoov nplej, thiab taum noj mov. Tsiaj protein txais cov zaub mov noj ntses, zaub mov cw, pluas noj, ntses noj, thiab lwm yam.
Flow Chart
Mixing system --- Extrusion system --- Qhuav qhov system --- Flavoring system --- Txias/Packing system
Ib co Machine Model
|
Qauv |
Nruab Hwj chim |
Lub zog tiag tiag |
Tso zis |
Dimension |
|
DSE - 65 |
74 kwv |
52 kwv |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kwv |
75 kwv |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205 kwv |
150 kwv |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165 kwv |
90 kwv |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280 kwv |
132 kwv |
3000-3500kg/hr |
45x4.5x6(m) |
Tshuab Paub meej
Lub npe: Mixer
Main lub cev muaj zog: 4kw
Cov zis: 50kg / sijhawm (5 ~ 6min txhua lub sijhawm)
Khoom siv: Stainless hlau
Muaj nuj nqi: Sib tov cov ntaub ntawv raw raws li qhov kev faib ua feem thiab ntxiv ib qho kev faib ua feem ntawm cov dej rau kev sib tov.
Kev ua haujlwm yog yooj yim thiab kev tu yooj yim.
Lub npe: ntsia hlau conveyor
Lub cev muaj zog: 1.1kw
Khoom siv: Stainless hlau
Cov zis: 0-1000kg/h
Muaj nuj nqi: Cov ntaub ntawv raw khoom sib xyaw ua ke yog transporteato lub extruder, nrog kev ua haujlwm yooj yim, tsis muaj paug thiab tsis muaj kuab paug.
Lub npe: DSE70 ob chav ntsia hlau extruder
Lub cev muaj zog: 30kw (ntau zaus tswj)
Pub lub cev muaj zog: 0.75kw (ntau zaus tswj)
Teb txiav lub cev muaj zog: 0.75kw (frequency tswj)
Tag nrho cov cua sov zog: 14kw
Cov zis: 200 ~ 250kg / H
Ntsia hlau ntev: 1520mm
Screw txoj kab uas hla: 70mm
Cov khoom siv ntsia hlau: 38CrMoAl
Roj twj tso kua mis lub cev muaj zog: 0.37kw
Lub npe: Electric tshuab ziab khaub ncaws
Cua sov: hluav taws xob cua sov
Cov kiv cua: 0.37kw
Nqus cua tso cua: 0.37kw
Function: Qhuav cov khoom kom tshem tawm cov dej noo thiab ua kom lub neej txee
Siv zaus hloov dua siab tshiab kev tswj, qhov ceev yog qeeb, zoo ib yam, thiab ruaj khov uas muaj kev tiv thaiv zoo ntawm lub cev muaj zog, bearings, thiab lwm yam. thiab cov saw hlau kis tau tus mob ua rau cov khoom ziab lub sij hawm ntev dua, qhov ziab kom qhuav zoo, thiab kev siv cua sov yog siab.
1) Txhua lub tshuab ua zaub mov ntses yog ua los ntawm SS khoom los xyuas kom meej cov khoom zoo.
2) Tag nrho cov ntses zaub mov kab yog tas mus li thiab tsis siv neeg.
3) Peb lub tuam txhab tuaj yeem muab ntau hom ntses pub mis raws li koj xav tau.
4) Cov duab thiab qhov loj ntawm cov ntses zaum kawg tuaj yeem hloov pauv los ntawm kev hloov pwm ntawm extruder.
5) Peb tuaj yeem muab qhov sib txawv me me tuag dawb. (3-6 pcs)
6) Peb kuj tuaj yeem muab lub tshuab ntim khoom ua haujlwm nrog cov ntses pub cov kab ntau lawm (nyob ntawm seb koj xav tau dab tsi).
Vim li cas thiaj xaiv peb?
1. Peb lub tuam txhab muaj ze li ntawm 20 xyoo ntawm kev paub hauv cov khoom noj khoom haus thiab kev tsim khoom thiab xa tawm.
2. Peb cov kws tshaj lij tuaj yeem muab cov qauv rau cov ntses sib txawv.
3. Peb muab kev lees paub zoo ib xyoos thiab muab cov khoom seem ntawm tus nqi qis rau lub sijhawm ntev.
4. Peb cov engineers tuaj yeem tuaj nruab thiab debug, thiab cob qhia koj cov kws tshaj lij.
5. Peb muab kev siv tshuab thiab txheej txheem, thiab tuaj yeem tsim raws li koj lub Hoobkas.
Packing & Delivery
Sab hauv pob yog yas zaj duab xis, sab nraud yog rooj plaub ntoo lossis plywood (raws li koj xav tau).
